TSUNILAX1/8CM

Last updated on July 26, 2022

  • TSUNILAX1/8CM is a one-piece, PET Film and paperboard backed induction heat seal that gives a tamper evident bond to Polyethylene (PE), Polypropylene (PP), Polyester (PET) Vinyl (PVC) and glass containers.
  • Also known as PD-10490-5
  • Available with standard or custom print.

Product Attributes

  • Tamper evident bond to PP containers
  • Good machinability
  • Easy entry
  • Cost effective

Construction

SI (µm)

Seal Diagram Lid

US (Mils)

12,7

Blue Disc

Polyester

0.5

203,2

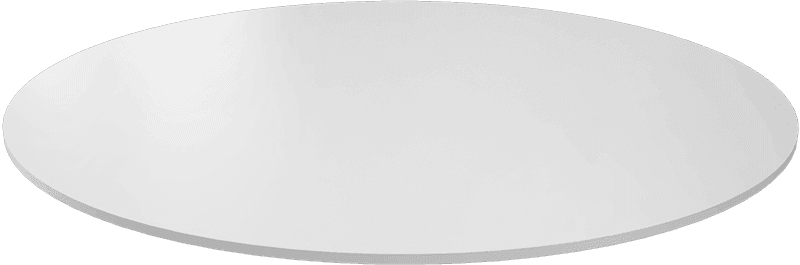

White Disc

White Paper

8.0

12,7

Yellow Aluminum

Aluminum Foil

0.5

38,1

Green Disc

Heat Seal

1.25

Seal Diagram Neck
Thickness Tolerance
± 10%
± 10%
Minimum Width
25,4 mm
1.0 in
Width Tolerance
± 1,6 mm
± 0.0625 in

Properties

Oxygen Transmission (O₂TR)
Essentially Zero
Water Vapor Transmission (WVTR)
Essentially Zero

Regulatory Compliance

FDA Compliance
21 CFR 177.1630 Polyethylene phthalate polymers 21 CFR 177.1210 Closures with sealing gaskets for food containers 21 CFR 176.180 Components of paper and paperboard in contact with dry foods. 21 CFR 176.170 Components of paper and paperboard in contact with aqueous and fatty foods.
Drug Master File (DMF)
Will be added to a DMF upon request for a Letter of Authorization.
Other Compliances
USFDA Food Allergen Guidelines | California Proposition 65 Labeling Requirements | Limitations of Heavy Metals in Packaging per CONEG & EU 94/62/EC, Article 11
Safety Data Sheet (SDS) Statement
Safety Data Sheets (SDS) are not required for articles as defined in 29 CFR 1910.1200, the OSHA Hazard Communication Standard (HazCom). This product is an article as defined by HazCom and is not considered to be, or to contain, a hazardous chemical based on evaluations made by our company.

Please note that construction does not reflect adhesive or resin bonding layers, if present.
